Automobile High Voltage Resistant Spark Plug Wire Set Replacement With Long Lifetime

Automobile High Voltage Resistant Spark Plug Wire Set Replacement With Long Lifetime

  • High Light

    Spark Plugs Wire Set

    ,

    Wire Set For Spark Plug

  • Product Name
    Spark Plug Wire Set
  • Length
    Based On Customer Demand
  • Withstand Voltage
    ≥30KV
  • Feature
    High And Low Temp Resistance, With Damping
  • Customer
    JANMOR
  • Standard
    ISO 6856 / ISO 3808
  • Place of Origin
    CHINA
  • Brand Name
    TY
  • Certification
    ISO/TS 16949:2009
  • Minimum Order Quantity
    500 Set
  • Price
    Negotiation
  • Packaging Details
    Based on customer's demand
  • Delivery Time
    15 working days after payment
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100,000 pcs per month

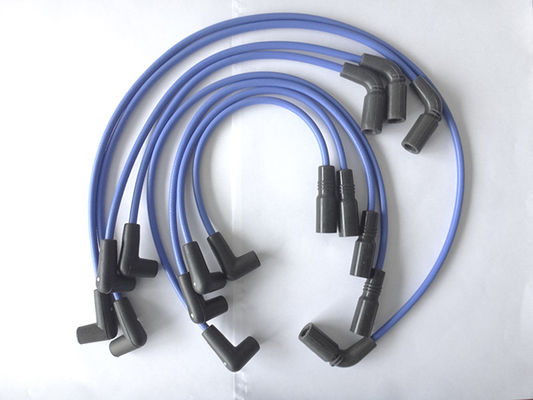

Automobile High Voltage Resistant Spark Plug Wire Set Replacement With Long Lifetime

High Voltage Resistant Ignition Wire Set connecting Spark Plug and Ignition Coil





Specifications:



Cable properties

Cable tensile strength

≥230N

Shore hardness

75±3 SH

Diameter of cable

7±0.3mm

Usage temp range -20℃-155℃

Color

Blue/according to consumers

Product features

Insertion and removal forces

20-70N

Withstand voltage

≥30KV

Connector ends

Straight part,1KΩ±20%

Bended part,1KΩ±20%

Tensile strength of the cable and terminal

≥100N





Description:

  1. The product is called auto high voltage ignition wire set, also called points cylinder line or distributor cable.
  2. One end of high voltage ignition cable is the terminal connecting spark plug and dustproof insulating boot, the other is the terminal connecting ignition coil and dustproof insulating sheath.
  3. Usage temp of the product is -20℃~155℃.
  4. Appearance of cable:smooth and flat surface, uniform color, clear writing, and no defect
  5. Lifetime is not less than 50,000km or 3 years.
  6. The product can be designed and developed according to customer’s requirements.





Applications:

  1. The product applies to the ignition system of auto engine.
