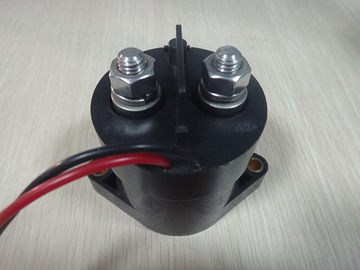

TY0002C06 Ceramic Sealing Tech High Voltage DC Contactor with Small Volume

TY0002C06 Ceramic Sealing Tech High Voltage DC Contactor with Small Volume

MOQ: 120 PCS
Price: Negotiation
Standard Packaging: According to customers
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 10,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949:2009
Model Number
TY0002C06
Product Name:
High Voltage DC Contactor
Material:
Ceramic And Epoxy
Technology:
Ceramic Metallization
Rated Carrying Current:
100A
Working Temp:
-55℃~85℃
Application:
Drive And Control System, Mining Equipment, Etc.
Highlight:

High Voltage Contactor

,

DC Power Contactor

Product Description

By Ceramic Sealing Tech High Voltage DC Contactor with Small Volume , Long Life , Light Weight





Features of product:

  1. Great temperature resistance property, can work under condition from -55℃ to 85℃.
  2. Adopts ceramic, the same with the space program; reduced risk of fire or meltdown in over-current conditions.
  3. Small size, can withstand and switch large current.
  4. Hermetically sealed, with no risks of arcing leakage and fire.
  5. Sealing chamber can effectively prevent contact oxidized and melted. Low and stable contact resistance.
  6. Can be used in any environment, including immersion, high/low pressure and other harsh environment.
  7. Not position sensitive, can be mounted in any position for ease of installation.



Specifications:



Item

Technical Parameter

Contact arrangement (main)

SPST-NO

Rated operating voltage

12-800VDC/VAC

Rated carrying current

100A (1/0 cable – 53mm2 cross-section area)

Max carrying current (1 time)

1 second, 500A; 60 seconds, 180A; 600 seconds, 140A

Switching capacity

see figure 1, power switching capacity for resistive load

Max cut-off current

1000A,400VDC,one time

Contact resistance

Max rated carry current



1.5mΩ

Mechanical life

300,000 cycles

Operate time, 25℃

Close (includes bounce) max

Bounce on close, max

Release time (includes arc time at max. break current)

25ms

6ms

10ms

Insulation resistance at 500VDC 500VDC

100mΩ (50mΩafter life test)

Dielectric at sea level (leakage <1mA)

2200VRMS

Shock (saw tooth or 1/2 sine, 11ms)

20G’s

Vibration, sinusoidal (10-2000 Hz peak)

20G’s

Operating ambient temp range

-55~85℃

Storage ambient temp range

-55~125℃

Weight, typical

0.21KG



TY0002C06 Ceramic Sealing Tech High Voltage DC Contactor with Small Volume 0



Applications:

  1. This high voltage DC contactor adopts advanced extended performance impervious ceramic sealing technology, which takes the place of common glass or epoxy sealing technology. Products with ceramic sealing technology have higher usage temp and more reliable sealing performance.
  2. Such contactor has the advantage of small volume, long life and light weight.
  3. Functions are similar with that of EV DC contactor produced by Kilovac and Panasonic.
  4. Widely used in AD or DC power supply switch of mining – drive and control system, electric vehicle, mobile mining equipment, aviation mobile devices, backup power supply system, hydrogen fuel cell drive system, ships and underwater equipment, solar power equipment. It is the ideal choice of large mobile power supply circuit.

TY0002C06 Ceramic Sealing Tech High Voltage DC Contactor with Small Volume 1



TY0002C06 Ceramic Sealing Tech High Voltage DC Contactor with Small Volume 2
