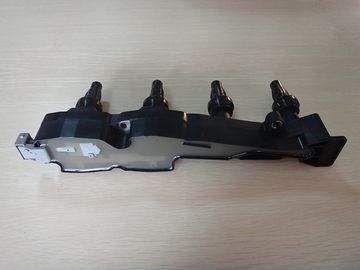

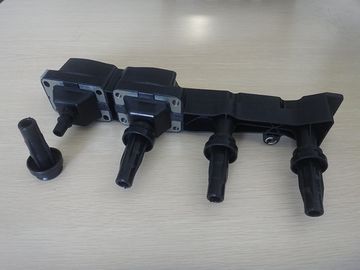

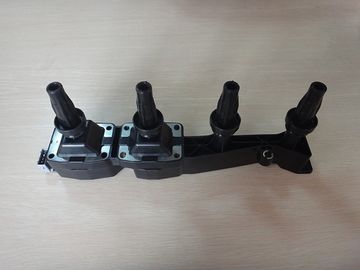

Dry Car Ignition Coil Peugeot 597056 / 96213086, Citroen 597056 / 9621308680, SAGEM 2526087

Dry Car Ignition Coil Peugeot 597056 / 96213086, Citroen 597056 / 9621308680, SAGEM 2526087

  • High Light

    Auto Ignition Coil

    ,

    High Performance Ignition Coil

  • Product Name
    Auto Dry Ignition Coils
  • Material
    PBT / Lacquered Wire
  • Color
    Black
  • Type
    Huge Power, Compact Structure, Stable Performance
  • Working Environment
    -20℃~120℃
  • Engine Type
    TU5JP4
  • Place of Origin
    CHINA
  • Brand Name
    TY
  • Certification
    ISO/TS 16949: 2009
  • Model Number
    TY0002C05
  • Minimum Order Quantity
    120 PCS
  • Price
    Negotiation
  • Packaging Details
    Box size: 39*18*6.5cm;Package quantity: 1PCS/box;Carton size: 40.5*39.5*43.5cm;Single carton volume: 0.06959m3;Package quantity: 12box/carton, 12PCS/carton;N.W.: 19.5 KG;G.W.: 20.5 KG
  • Delivery Time
    15 working days after payment
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    10,000 pcs per month

Dry Car Ignition Coil Peugeot 597056 / 96213086, Citroen 597056 / 9621308680, SAGEM 2526087

Dry Car Ignition Coil Peugeot 597056 / 96213086, Citroen 597056 / 9621308680, SAGEM 2526087





1. Specifications:



Item

Technical Parameter



Static values before thermal shock test



Primary resistance (Ω)

0.5±20%

Primary inductivity (mH)

/

Secondary resistance (kΩ)

15±10%

Secondary inductivity (H)

/



High voltage before thermal shock test



Secondary voltage (kV) 1MΩ

>30

Secondary voltage (kV) 1MΩ 50pF

>25



“30kV”-test before thermal shock test



30kV over 3 min (open load)

OK



Thermal shock test



50 Zyklen (40min -20℃;20min +120℃)

OK



Static values after thermal shock test



Primary resistance (Ω)

0.5±20%

Primary inductivity (mH)

/

Secondary resistance (kΩ)

15±10%

Secondary inductivity (H)

/



High voltage after thermal shock test



Secondary voltage (kV) 1MΩ

>30

Secondary voltage (kV) 1MΩ 50pF

>25



“30kV”-test before thermal shock test



30kV over 3 min (open load)

OK





2. Description:

  • Adopts high-temperature resistant lacquered wires and high silicone steel sheets and imported epoxide resin for capsulation
  • Can be used in the temp of -20℃~120℃
  • Prevent water, dust and shaking
  • Owns a long life, huge power and stable performance



3. Applications:



Applicable Brand

Applicable car

OEM

PEUGEOT

307 1.6L(2004~now)

206 1.6L(Dec, 2012~2009)

207 1.6L(2009~now)

308 1.6L(Jan, 2010~now)

408 1.6L(Jan, 2010~now)

597056

96213086

5970.56

Citroen

Elysee 1.6L(Jun, 2001~now)

C2 1.6L(Oct, 2006~now)

Picasso 1.6L(Jan, 2007~now)

Jaquar 1.6L(2008~now)

597056

9621308680

SAGEM



2526087

ALEO



245086

BERU



2S241
