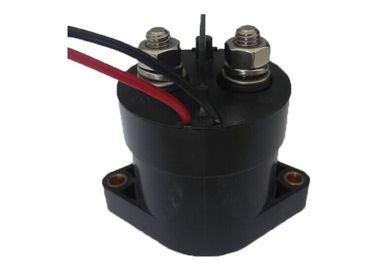

Small Volume High Voltage DC Contactor for Electric Car / Ships / Underwater Equipment

Small Volume High Voltage DC Contactor for Electric Car / Ships / Underwater Equipment

MOQ: 120 PCS
Price: Negotiation
Standard Packaging: According to customers
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 10,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949:2009
Model Number
TY0001C06
Product Name:
High Voltage DC Contactor
Material:
Ceramic And Epoxy
Working Temp:
-55℃~85℃
Rated Carrying Current:
200A
Technology:
Ceramic Metallization
Application:
Electric Vehicle, Solar Power Equipment, Etc.
Highlight:

High Voltage Contactor

,

Car Contactor

Product Description

Small Volume High Voltage DC Contactor for Electric Cars , Ships , Underwater Equipments





Specifications:



Item

Technical Parameter

Contact arrangement (main)

SPST-NO

Rated operating voltage

12-750VDC/VAC

Rated carrying current

200A (1/0 cable – 53mm2 cross-section area)

Max carrying current (1 time)

1 second, 1200A; 60 seconds, 300A; 600 seconds, 200A

Switching capacity

see figure 1, power switching capacity for resistive load

Max cut-off current

1000A,320VDC,one time

Contact resistance

Max rated carry current

Typical 150A



0.4mΩ

0.3mΩ

Mechanical life

300,000 cycles

Operate time, 25℃

Close (includes bounce) max

Close (include bounce) typical

Bounce on close, max

Release time (includes arc time at max. break current)

30ms

13ms

7ms

12ms

Contact arrangement (auxiliary)

SPST-NO (the auxiliary contact is mechanically linked to the main power contacts)

Auxiliary contact rating

2A,24VDC

Minimum current and voltage for auxiliary contact

100mA,8V

Insulation resistance at 500VDC 500VDC

100mΩ (50mΩafter life test)

Dielectric at sea level (leakage <1mA)

2200VRMS

Shock (saw tooth or 1/2 sine, 11ms)

20G’s

Vibration, sinusoidal (10-2000 Hz peak)

20G’s

Operating ambient temp range

-55~85℃

Storage ambient temp range

-55~125℃

Weight, typical

0.38KG (without nuts/washers)

Small Volume High Voltage DC Contactor for Electric Car / Ships / Underwater Equipment 0



Features of product:

  1. Great temperature resistance property, can work under condition from -55℃ to 85℃.
  2. Adopts ceramic, the same with the space program; reduced risk of fire or meltdown in over-current conditions.
  3. Small size, can withstand and switch large current.
  4. Hermetically sealed, with no risks of arcing leakage and fire.
  5. Sealing chamber can effectively prevent contact oxidized and melted. Low and stable contact resistance.
  6. Can be used in any environment, including immersion, high/low pressure and other harsh environment.
  7. Not position sensitive, can be mounted in any position for ease of installation.



Applications:

  1. This high voltage DC contactor adopts advanced extended performance impervious ceramic sealing technology, which takes the place of common glass or epoxy sealing technology. Products with ceramic sealing technology have higher usage temp and more reliable sealing performance.
  2. Such contactor has the advantage of small volume, long life and light weight.
  3. Functions are similar with that of EV DC contactor produced by Kilovac and Panasonic.
  4. Widely used in AD or DC power supply switch of mining – drive and control system, electric vehicle, mobile mining equipment, aviation mobile devices, backup power supply system, hydrogen fuel cell drive system, ships and underwater equipment, solar power equipment. It is the ideal choice of large mobile power supply circuit.

Small Volume High Voltage DC Contactor for Electric Car / Ships / Underwater Equipment 1



Small Volume High Voltage DC Contactor for Electric Car / Ships / Underwater Equipment 2
