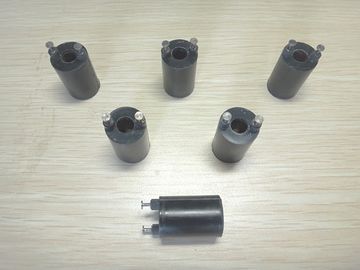

Frameless Inductive / Magnetic / Micro Relay Coil for Vacuum Relays / Aircraft / Radar / Warship
  • name

Frameless Inductive / Magnetic / Micro Relay Coil for Vacuum Relays / Aircraft / Radar / Warship

MOQ: 500 PCS
Price: Negotiation
Standard Packaging: Box size: 19.7*12.4*3.9cm；Package quantity: 70PCS/box；Carton size: 34*34*35cm；Single carton volume: 0.04046m3；Package quantity: 16box/carton, 1120PCS/carton；N.W.: 20.5KG；G.W.: 21.5KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0015C05
Product Name:
Frameless Inductive/magnetic/micro Coils
Material:
EMC/lacquered
Color:
Black
Type:
Huge Power, Compact Structure, Stable Performance
Working Voltage:
≤26.5V
Working Environment:
-55~125
Highlight:

Inductance Coil

,

Inductive Coil

Product Description

Frameless Inductive / Magnetic / Micro Relay Coil , for Vacuum Relays / Aircraft / radar / Warship





Specifications:



Item

Technical Parameter

Working temperature(℃)

-55~125

Rated voltage(V)

26.5

Resistance(Ω)

125±5%

Ampere-turn(A*N)

/

Medium pressure(500V,50Hz)

No leakage

Appearance

Smooth surface, no bubble,  blowhole, defect, loose or burr





Description:

  • The product adopts high-performance EMC plastic material and high-temperature lacquered wire.
  • Small volume, large power, high performance and good temperature endurance
  • Apply to vacuum relays, and military field such as aircraft, radar or warship.
  • Has various different types and be able to develop more kinds as customers’ requirements



Applications:



Applicable industries

Specific application

Electronic components

Relay

Mechanical and electrical industry

Different instrument and meter

Military industry

Aircraft, radar, warship



Frameless Inductive / Magnetic / Micro Relay Coil for Vacuum Relays / Aircraft / Radar / Warship 0
