Compact Structure High Temperature Resistant Micro Coil with Stable Performance

I'm Online Chat Now
Certification
China Nanjing Tianyi Automobile Electric Manufacturing Co., Ltd. certification
TY has a huge potentiality. Hope it becomes better.

—— Catherine from Russia

Nice factory and friendly team. The quality of TY's product is good. Please keep!

—— James from US

Quality is no problem. Hope to have more kinds of product.

—— Abel

Compact Structure High Temperature Resistant Micro Coil with Stable Performance

Compact Structure High Temperature Resistant Micro Coil with Stable Performance
Compact Structure High Temperature Resistant Micro Coil with Stable Performance

Large Image :  Compact Structure High Temperature Resistant Micro Coil with Stable Performance Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS 16949: 2009
Model Number: TY0008C05
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Price: Negotiation
Packaging Details: Box size: 19.7*12.4*3.9cm;Package quantity: 150PCS/box;Carton size: 34*34*35cm;Single carton volume: 0.04046m3;Package quantity: 16box/carton, 2400PCS/carton;N.W.: 20.5KG;G.W.: 21.5KG
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 100,000 pcs per month
Detailed Product Description
Material: EMC/lacquered Color: Black
Working Environment: -55℃~125℃ Feature: Huge Power, Compact Structure, Stable Performance
High Light:

Inductance Coil

,

Inductive Coil

High Temperature Resistant Micro Coil with Compact Structure and Stable Performance





1. Applications:



Applicable industries

Specific application

Electronic components

Relay

Mechanical and electrical industry

Different instrument and meter

Military industry

Aircraft, radar, warship







2. Description:

  • The product adopts high-performance EMC plastic material and high-temperature lacquered wire.
  • Small volume, large power, high performance and good temperature endurance
  • Apply to vacuum relays, and military field such as aircraft, radar or warship.
  • Has various different types and be able to develop more kinds as customers’ requirements



3. Specifications:



Item

Technical Parameter

Working temperature(℃)

-55~125

Rated voltage(V)

12

Resistance(Ω)

80±5%

Ampere-turn(A*N)

/

Medium pressure(500V,50Hz)

No leakage

Appearance

Smooth surface, no bubble,  blowhole, defect, loose or burr

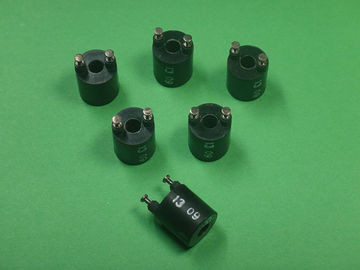

Compact Structure High Temperature Resistant Micro Coil with Stable Performance 0
