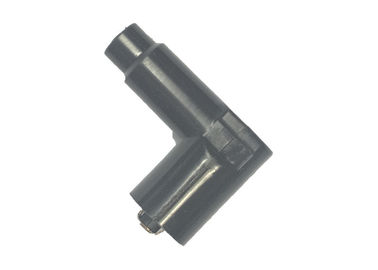

Name: Black 90 Degree Bended Spark Plug Lead Connector with Special Wing Spring
Brand: Nanjing Tianyi Automobile Electric Manufacturing Co., Ltd.
SKU: TY0004C03
Availability: InStock

MOQ:	1000 PCS
Price:	Negotiation
Standard Packaging:	Carton size: 490310190mm；Single carton volume: 0.029m3；Package quantity: 1000Pcsp；N.W.: 17KG；G.W.: 18KG
Delivery Period:	15 working days after payment
Payment Method:	T/T, Western Union
Supply Capacity:	250,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

ISO/TS 16949: 2009

Model Number

TY0004C03

Resistance:

1KΩ±20%

Withstand Voltage:

≥30KV

Color:

Black Silicone Rubber And Black Resistor

Application:

Connecting Wire And Spark Plug

Feature:

Assemble With Spark Plug By Special Wing

Customers:

JANMOR Etc.

Highlight:

Spark Plug Lead Connectors

Ignition Lead Connectors

Bended Spark Plug Lead Connector

Product Description

Black 90 Degree Bended Spark Plug Lead Connector with Special Wing Spring

Specifications and description of spark plug wire connector:

Raw material properties	Shore-A hardness	55±5A
	Elongation at break	≥300%
	Tear strength	≥15N/mm
	Dielectric strength	≥20KV/mm
	Tensile strength	≥6N/mm2
	Tensile deformation	≤20%
	Density	1.17±0.02 g/cm3
	Withstand voltage 18KV for 30minutes	NO breakdown
	Surface resistance	≥10¹¹Ω
	Ageing resistance	155±2.5℃X168h,Without any cracking
Connector characteristics	Usage temperature	-20℃-155℃
	Breakdown voltage (AC)	≥30KV
	Insertion and removal forces	20-70N
	Overall length	/
	Resistance	1KΩ±20%
	Lifetime	≥50,000km / ≥3years
	Heat and cold resistance
	Great dielectric properties
	Acid and alkali resistance
	No deformation, no dilatation
	Good uniformity of dimension
	Can be customized based on customers
Assembly dimension	Cable entry diameter	5.5±0.5mm
	Assembly dimension: connecting cable
	Plug entry diameter	14±0.5mm
	Assembly dimension: connecting spark plug

Applications:

The connector is used in the ignition system of auto engine, responsible for connecting high voltage ignition wire and spark plug.

Advantages:

All products are manufactured under requirements of ISO 6856 and ISO 3803, so the quality of Tianyi's connectors is

Because of the high quality, all products are exported to Europe and supplied to famous corporation like JANMOR.
