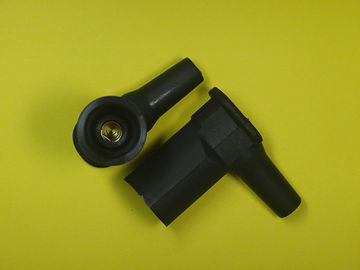

Bended Spark Plug Wire Connector Ignition Cable Connector without Resistance

Bended Spark Plug Wire Connector Ignition Cable Connector without Resistance

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 490*310*190mm;Single carton volume: 0.029m3;Package quantity: 1000Pcsp;N.W.: 17KG;G.W.: 18KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0016C03
Class:
Spark Plug Wire Connector
Color:
Black Silicone Rubber And Mental Resistor
Withstand Voltage:
≥30KV
Resistance:
0KΩ
Customers:
JANMOR Etc.
Feature:
High Voltage And Temp Withstand
Highlight:

Spark Plug Lead Connectors

,

Ignition Lead Connectors

,

Temp Withstand Ignition Cable Connector

Product Description

Bended Spark Plug Wire Connector Ignition Cable Connector without Resistance





1. Advantages of spark plug wire connector:



All products are manufactured under requirements of ISO 6856 and ISO 3803, so the quality of Tianyi's connectors is

Because of the high quality, all products are exported to Europe and supplied to famous corporation like JANMOR.

Tianyi has its own mold manufacturing and developing center. Any specific demand from customers can be accomplished by our technicians.



2. Specifications and description:



Raw material properties

Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Connector characteristics

Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

/

Resistance

0KΩ

Lifetime

≥50,000km / ≥3years

Heat and cold resistance

Great dielectric properties

Acid and alkali resistance

No deformation, no dilatation

Good uniformity of dimension

Can be customized based on customers

Assembly dimension

Cable entry diameter

6±0.5mm

Assembly dimension: connecting cable

Bended Spark Plug Wire Connector Ignition Cable Connector without Resistance 0

Plug entry diameter

17±0.5mm

Assembly dimension: connecting spark plug

Bended Spark Plug Wire Connector Ignition Cable Connector without Resistance 1





3. Applications:



The connector is used in the ignition system of auto engine, responsible for connecting high voltage ignition wire and spark plug. Please see pictures below.
