VOLKSWAGEN Car Ignition Coil 04C.905.110.F , Extremely Temperature Resistance

MOQ:	120 PCS
Price:	Negotiation
Standard Packaging:	Based on customers
Delivery Period:	15 working days after payment
Payment Method:	T/T, Western Union
Supply Capacity:	10,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

ISO/TS 16949: 2009

Model Number

TY0031C05

Product Name:

Pensile Ignition Coil

Brand:

Volkswagen

04C.905.110.F

Feature:

High Temp / Voltage Resistance

Highlight:

Auto Ignition Coil

Automobile Ignition Coil

Product Description

VOLKSWAGEN Car Ignition Coil 04C.905.110.F , Extremely Temperature Resistance

The ignition coil is an important part of the ignition system. It provides the necessary high voltage and ignition energy for producing the high voltage sparks at the spark plug.

1. Applicable cars:

Brand	OEM
VOLKSWAGEN	04C.905.110.F

2. Specifications of coil:

Item	Technical Parameter
Static values before thermal shock test
Primary resistance (Ω)	435±30
Primary inductivity (uH)	72
Secondary resistance (kΩ)	5.15±0.3
Secondary inductivity (H)	1.6±0.3
High voltage before thermal shock test
Secondary voltage (kV) 1MΩ	＞30
Secondary voltage (kV) 1MΩ 50pF	＞25
“30kV”-test before thermal shock test
30kV over 3 min (open load)	OK
Thermal shock test
50 Zyklen (40min -20℃；20min +120℃)	OK
Static values after thermal shock test
Primary resistance (Ω)	435±30
Primary inductivity (uH)	72
Secondary resistance (kΩ)	5.15±0.3
Secondary inductivity (H)	1.6±0.3
High voltage after thermal shock test
Secondary voltage (kV) 1MΩ	＞30
Secondary voltage (kV) 1MΩ 50pF	＞25
“30kV”-test before thermal shock test
30kV over 3 min (open load)	OK

3. Features of coil:

Mounted directly on the spark plug
Made of imported lacquered wire, epoxy, plastic, and silicone rubber, guarantee excellent high temperature and voltage resistance, huge power as well as stable performance
High-value materials for optimum ratio of weight to volume
Prevent water, dust and shaking
Durable and environmentally friendly ignition
All plastic and rubber parts of coil are produced by ourselves, providing high uniformity of coils.

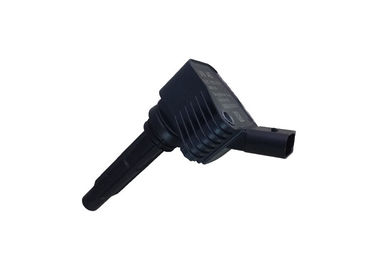

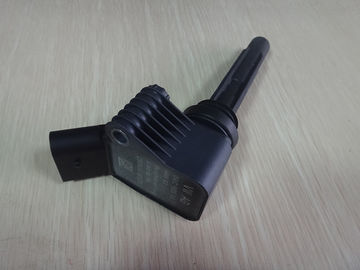

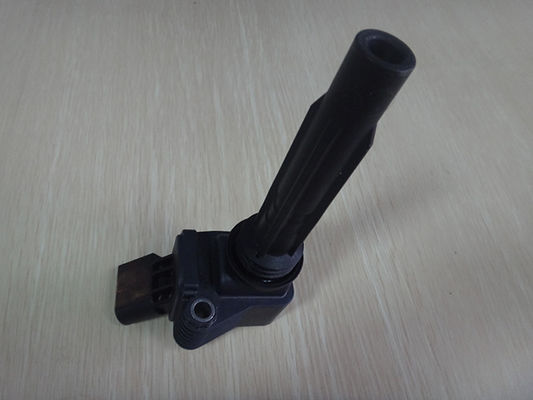

4. Picture:

VOLKSWAGEN Car Ignition Coil 04C.905.110.F , Extremely Temperature Resistance 0
