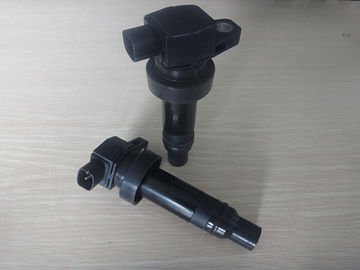

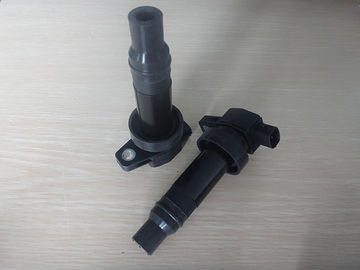

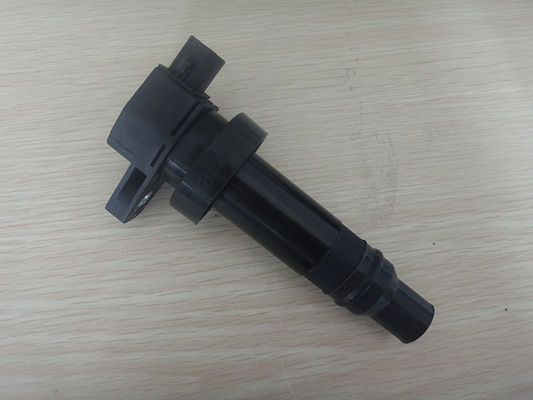

Pensil Automotive Car Ignition Coil for FORTE / RIO / SOUL / CERATO / AVANTE

Pensil Automotive Car Ignition Coil for FORTE / RIO / SOUL / CERATO / AVANTE

MOQ: 120 PCS
Price: Negotiation
Standard Packaging: Based on customers
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 10,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0030C05
Product Name:
Pensil Ignition Coils
Material:
PBT & Lacquered Wire & Rubber & Epoxy
Withstand Voltage:
≥30KV
Working Environment:
-20℃~150℃
Highlight:

High Performance Ignition Coil

,

Automobile Ignition Coil

Product Description

Pensil Ignition Coil 27301-2B010 for FORTE / K2 / RIO / SOUL / K3S / CERATO / K4 / AVANTE / ELANTRA / ACCENT



1. Specifications:



Item

Technical Parameter



Static values before thermal shock test



Primary resistance (mΩ)

600±10%

Primary inductivity (mH)

/

Secondary resistance (kΩ)

6±10%

Secondary inductivity (H)

/



High voltage before thermal shock test



Secondary voltage (kV) 1MΩ

>30

Secondary voltage (kV) 1MΩ 50pF

>25



“30kV”-test before thermal shock test



30kV over 3 min (open load)

OK



Thermal shock test



50 Zyklen (40min -20℃;20min +120℃)

OK



Static values after thermal shock test



Primary resistance (mΩ)

600±10%

Primary inductivity (mH)

/

Secondary resistance (kΩ)

6±10%

Secondary inductivity (H)

/



High voltage after thermal shock test



Secondary voltage (kV) 1MΩ

>30

Secondary voltage (kV) 1MΩ 50pF

>25



“30kV”-test before thermal shock test



30kV over 3 min (open load)

OK



2. Description:

  • Adopts high-temperature resistant lacquered wires and high silicone steel sheets and imported epoxide resin for capsulation
  • Can be used in the temp of -20℃~150℃
  • Prevent water, dust and shaking
  • Can work in severe environment, keeping good ductility but no cracking
  • Owns a long lifetime (≥30,000Km / ≥2 years), huge power and stable performance


3. Applications:


Applicable Car Brand

Applicable Model

KIA

FORTE

K2

RIO

SOUL

K3S

CERATO

K4

Beijing Hyundai

AVANTE

ELANTRA

ACCENT



Pensil Automotive Car Ignition Coil for FORTE / RIO / SOUL / CERATO / AVANTE 0
