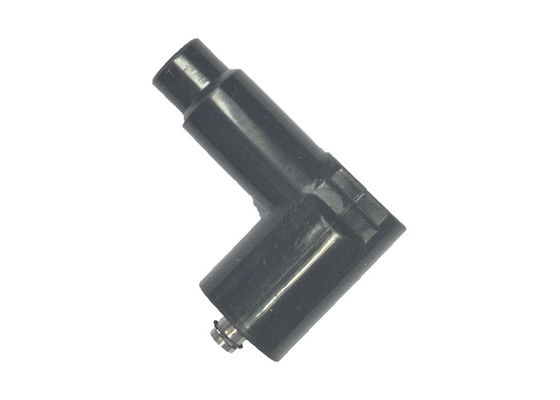

Car Parts Spark Plug Lead Connectors / Ignition Coil Wire Connector TY0008C03

Car Parts Spark Plug Lead Connectors / Ignition Coil Wire Connector TY0008C03
Car Parts Spark Plug Lead Connectors / Ignition Coil Wire Connector TY0008C03 Car Parts Spark Plug Lead Connectors / Ignition Coil Wire Connector TY0008C03

Large Image :  Car Parts Spark Plug Lead Connectors / Ignition Coil Wire Connector TY0008C03 Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: TY
Certification: ISO/TS 16949: 2009
Model Number: TY0008C03

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: Carton size: 490*310*190mm;Single carton volume: 0.029m3;Package quantity: 1000Pcsp;N.W.: 17KG;G.W.: 18KG
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 250,000 pcs per month
Detailed Product Description
Resistance: 1KΩ±20% Withstand Voltage: ≥30KV
Appearance: Assembly Parts Application: Auto Ignition System
Standard: ISO 6856 / ISO 3808 Customers: BorgWarner, JANMOR Etc.
High Light:

Spark Plug Lead Connectors

,

Ignition Lead Connectors

Auto Parts High / Low Temp Resistant Silicone Rubber Plug connecting Spark Plug





Standard for spark plug wire connector:

  1. ISO 6856
  2. ISO 3808



Customers:

  1. BorgWarner, JANMOR etc.



Specifications and description:



Raw material properties

Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Connector characteristics

Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

/

Resistance

1KΩ±20%

Lifetime

≥50,000km / ≥3years

Heat and cold resistance

Great dielectric properties

Acid and alkali resistance

No deformation, no dilatation

Good uniformity of dimension

Can be customized based on customers

Assembly dimension

Cable entry diameter

5.5±0.5mm

Assembly dimension: connecting cable

Car Parts Spark Plug Lead Connectors / Ignition Coil Wire Connector TY0008C03 0

Plug entry diameter

14±0.5mm

Assembly dimension: connecting spark plug

Car Parts Spark Plug Lead Connectors / Ignition Coil Wire Connector TY0008C03 1









Applications:

  1. The connector is used in the ignition system of auto engine, see picture below:

Car Parts Spark Plug Lead Connectors / Ignition Coil Wire Connector TY0008C03 2
