Straight Silicone Spark Plug Rubber Boot Replacement / Spark Plug Components
  • name
  • name
  • name

Straight Silicone Spark Plug Rubber Boot Replacement / Spark Plug Components

MOQ: 1000
Price: Negotiation
Standard Packaging: According to customer's requirement
Delivery Period: 15 working days after receviced your payment
Payment Method: T/T, Western Union
Supply Capacity: 200,000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0006B02
Customers:
JANMOR Etc.
Withstand Voltage:
≥30KV
Usage Temp:
-20~155℃
Application:
Ignition System E.g. Car Engine
Highlight:

Rubber Spark Plug Boot

,

Spark Plug Components

Product Description

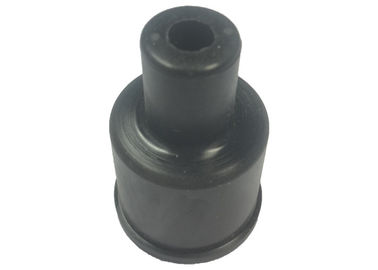

Black Straight Silicone Rubber Sheath connecting Spark Plug and Cable, Long Life





Raw Material (Silicone Rubber) Features:



Smell Odorless
Shore-A hardness (A) 55±5
Elongation at break (%) ≥300
Tear strength (N/mm) ≥15
Dielectric strength (KV/mm) ≥20
Tensile strength (N/mm2) ≥6
Tensile deformation (%) ≤20
Density (g/cm3) 1.17±0.02
Withstand voltage 18KV for 30minutes NO breakdown
Surface resistance (Ω) ≥1011
Ageing resistance 155±2.5℃X168h,Without any cracking






Product Basic Features:



Color Black
Material  Silicone Rubber
Withstand voltage (KV) ≥30KV
Usage temperature (℃) -20-155
Burr of product's parting lines (mm) ≤0.5
Inner diameter of small end (mm) 7±0.5
Inner diameter of big end (mm) 19±0.5
Advantage

High and low temperature resistance,

Great dielectric properties





Applications:

  1. in the auto engine, which is a high voltage ignition system, see picture below:



Product life:

  1. The pruduct can be used more than 50,000 km or 3 years.





Competitive advantage:

  1. We have CNC maching center, electrical discharging machine and other processed machine.
  2. We can produce modes individually, helping controling product quality and shortening development cycle.
  3. We can design and develop specific products for customers, meet special requirements.







Tags:

High Temperature Spark Plug Boot,

Rubber Spark Plug Boot,

Spark Plug Components
