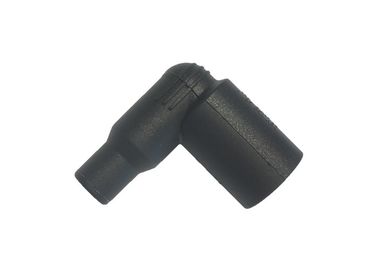

High Performance Spark Plug Wire Connector TY0007C03 Withstand High / Low Temp

High Performance Spark Plug Wire Connector TY0007C03 Withstand High / Low Temp

MOQ: 1000 PCS
Price: Negotiation
Standard Packaging: Carton size: 400*300*155mm;Single carton volume: 0.0186m3;Package quantity: 540Pcsp;N.W.: 9KG;G.W.: 10KG
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 250,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0007C03
Name:
Spark Plug Wire Connector
Material:
Silicone Rubber And PBT Resistor
Withstand Voltage:
≥30KV
Usage Temp:
-20℃~155℃
Customers:
BorgWarner, JANMOR Etc.
Standard:
ISO 6856 / ISO 3808
Appearance:
90 Degree Bended
Resistance:
1KΩ±20%
Highlight:

Ignition Lead Connectors

,

Spark Plug Connectors

,

Spark Plug Wire Connector TY0007C03

Product Description

90 Degree Bended Spark Plug Wire Connector , withstand High / Low Temp and Acid / Alkali





Specifications:



Raw material properties

Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Product characteristics

Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

/

Resistance

1KΩ±20%

Assembly dimension

Cable entry diameter

5.5±0.5mm

Assembly dimension: connecting cable

High Performance Spark Plug Wire Connector TY0007C03 Withstand High / Low Temp 0

Plug entry diameter

14.3±0.5mm

Assembly dimension: connecting spark plug

High Performance Spark Plug Wire Connector TY0007C03 Withstand High / Low Temp 1

Standard

ISO 6856 / ISO 3808

Customers

BorgWarner, JANMOR etc.





Product Strength:

  1. Great heat resistance, cold tolerance, and dielectric properties.
  2. Made of silicone rubber, no harm to body
  3. No deformation, acid and alkali resistance, no dilatation.
  4. Stable and conforming dimensions.
  5. More than 50,000 km or 3 years lifetime
  6. Can be customized



Applications:

  1. The spark plug wire connector is used in the ignition system of auto engine, see picture below:

High Performance Spark Plug Wire Connector TY0007C03 Withstand High / Low Temp 2
