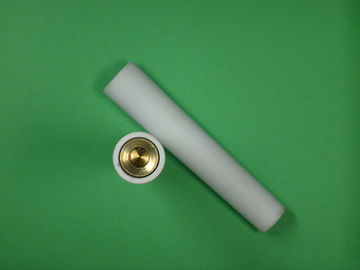

High and Low Temp Resistant Ceramic Resistor for Auto Engine , TY0001B05

High and Low Temp Resistant Ceramic Resistor for Auto Engine , TY0001B05

MOQ: 1000 pcs
Price: negotiation
Standard Packaging: Based on customer's demand
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 50,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0002B05
Product Name:
Ceramic Resistor
Applicaiton:
High Voltage Ignition System
Resistance:
5KΩ±20%
Withstand Voltage:
≥30KV
Standard:
ISO 6856 / ISO 3808
Customers:
BorgWarner, JANMOR Etc.
Appearance:
Epoxy Potting Piece
Feature:
High And Low Temp Resistance
Highlight:

Ceramic Power Resistor

,

Electrical Resistor

Product Description

High and Low Temp Resistant Straight White Ceramic Resistor , filling with Epoxy





Description:

  1. The shell of the product adopts special ceramics, which has high melting point, high hardness, high abrasion resistance, and oxidation resistance.
  2. The compressive strength of ceramics is high, but the tensile strength is low, and the plasticity and toughness is not good.
  3. The ceramic shell and resistor of the product is combined by filling epoxy.
  4. Epoxy potting owns high hardness and can resist high and low temperature.
  5. Usage temperature is -30~200℃
  6. Useful time is not less than 50,000 km or 3 years
  7. Can be designed and developed according to customer’s requirements



Specifications:



Raw material properties

Volume density (g/cm3

3.9-4.15

Elasticity Modulus (Gpa)

330-380

Bending strength (Mpa)

≥350

Coefficient of thermal expansion (10-6/K)

8.5

Thermal conductivity (W/m.K)

10.9

Luo's hardness (HRA)

85

AL2O3  %

94.78

Product characteristics



Resistance (KΩ)

5±20%

Color

White

Withstand voltage (KV)

≥30

Usage temperature (℃)

-20-155

Insertion and removal forces (N)

20-70

Material

Alumina ceramic

Assembly way

Epoxy resin

Assembly dimension: connecting ignition wire

    High and Low Temp Resistant Ceramic Resistor for Auto Engine , TY0001B05 0

Inner diameter: connecting Spark Plug

         High and Low Temp Resistant Ceramic Resistor for Auto Engine , TY0001B05 1





Applications:

  1. Apply to the ignition system of auto engine
