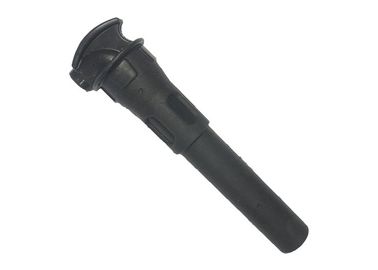

Heat Resistance Straight Spark Plug Boot Heat Shield Silicone Rubber Sheath

Heat Resistance Straight Spark Plug Boot Heat Shield Silicone Rubber Sheath

MOQ: 1000
Price: Negotiation
Standard Packaging: According to customer's requirement
Delivery Period: 15 working days after receviced your payment
Payment Method: T/T, Western Union
Supply Capacity: 200,000pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0012B01
Standand:
ISO6856
Customers:
BorgWarner, JANMOR Etc.
Withstand Voltage:
≥30KV
Feature:
High And Low Temp Resistance, With Damping
Highlight:

High Temperature Spark Plug Boot

,

Rubber Spark Plug Boot

Product Description

Black Straight Spark Plug Silicone Rubber Sheath , Heat resistance , Cold Tolerance





Raw Material (Silicone Rubber) Features:



Smell Odorless
Shore-A hardness 55±5A
Elongation at break ≥300%
Tear strength ≥15N/mm
Dielectric strength ≥20KV/mm
Tensile strength ≥6N/mm2
Tensile deformation ≤20%
Density 1.17±0.02 g/cm3
Withstand voltage 18KV for 30minutes NO breakdown
Surface resistance ≥1011Ω
Ageing resistance 155±2.5℃X168h,Without any cracking






Product Basic Features:



Color Black
Material  Silicone Rubber
Withstand voltage ≥30KV
Usage temperature -20℃-155℃
Burr of product's parting lines ≤0.5mm
Diameter of ignition wire end 7±0.5mm
Diameter of spark plug end 9±0.5mm
Advantage

Great heat resistance, cold tolerance, and dielectric properties





Product life:

  1. The pruduct can be used more than 50,000 km or 3 years.



Applications:

  1. in the auto engine, which is a high voltage ignition system, see picture below:





Competitive advantage:

  1. We have CNC maching center, electrical discharging machine and other processed machine.
  2. We can produce modes individually, helping controling product quality and shortening development cycle.
  3. We can design and develop specific products for customers, meet special requirements.
