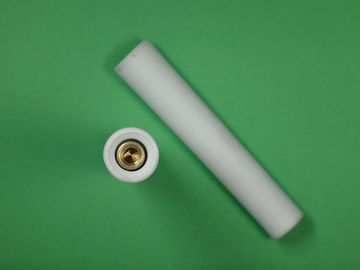

1 KΩ Straight White Ceramic Resistor , High Melting Point & Hardness & Abrasion Resistance

1 KΩ Straight White Ceramic Resistor , High Melting Point & Hardness & Abrasion Resistance

MOQ: 1000 pcs
Price: negotiation
Standard Packaging: Based on customer's demand
Delivery Period: 15 working days after payment
Payment Method: T/T, Western Union
Supply Capacity: 50,000 pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
TY
Certification
ISO/TS 16949: 2009
Model Number
TY0001B05
Product Name:
Ceramic Resistor
Type:
Assembly Parts
Color:
White
Resistance:
1KΩ+40%
Standard:
ISO 6856 / ISO 3808
Customers:
BorgWarner, JANMOR Etc.
Highlight:

Ceramic Power Resistor

,

Electrical Resistor

Product Description

1 KΩ Straight White Ceramic Resistor , High Melting Point & Hardness & Abrasion Resistance





Specifications:



Raw material properties

Volume density (g/cm3

3.9-4.15

Elasticity Modulus (Gpa)

330-380

Bending strength (Mpa)

≥350

Coefficient of thermal expansion (10-6/K)

8.5

Thermal conductivity (W/m.K)

10.9

Luo's hardness (HRA)

85

AL2O3  %

94.78

Product characteristics



Resistance (KΩ)

1+40%

Color

White

Withstand voltage (KV)

≥30

Usage temperature (℃)

-20-155

Insertion and removal forces (N)

20N-70N

Material

Alumina ceramic

Assembly way

Epoxy resin

Assembly dimension: connecting ignition wire

    1 KΩ Straight White Ceramic Resistor , High Melting Point & Hardness & Abrasion Resistance 0

Inner diameter: connecting Spark Plug

         1 KΩ Straight White Ceramic Resistor , High Melting Point & Hardness & Abrasion Resistance 1





Description:

  1. The shell of the product adopts special ceramics, which has high melting point, high hardness, high abrasion resistance, and oxidation resistance.
  2. The compressive strength of ceramics is high, but the tensile strength is low, and the plasticity and toughness is not good.
  3. The ceramic shell and resistor of the product is combined by filling epoxy.
  4. Epoxy potting owns high hardness and can resist high and low temperature.
  5. Usage temperature is -30~200℃
  6. Useful time is not less than 50,000 km or 3 years
  7. Can be designed and developed according to customer’s requirements





Applications:

  1. Apply to the ignition system of auto engine

1 KΩ Straight White Ceramic Resistor , High Melting Point & Hardness & Abrasion Resistance 2
